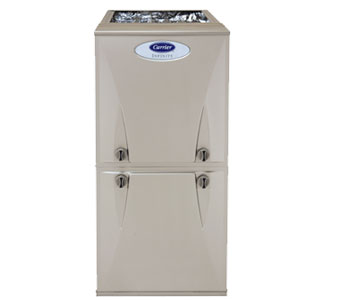

Carrier Infinity 96 Gas Furnace 59TN6
Superior Comfort Two Model Choices
Backed by the intelligent Infinity control and a variable-speed blower, this furnace will run in low stage up to 90% of the time. Longer, low-stage run times give you better energy efficiency, better temperature control and increased comfort. It also assures you quieter performance.
Variable-speed blower operation also aids other system components and can help make your air conditioning system more efficient and improve summer dehumidification.
Efficiency
- Up to 96.7% AFUE
- All sizes meet ENERGY STAR® qualifications
- Highest degree of electrical efficiency among Carrier furnaces
Performance
- Low stage operation up to 90% of time for quiet, energy-efficient operation
- Allows 4 choices of “constant ON” fan speed operation
- Hybrid Heat® compatible
- Exceptional year-round humidity management when installed as part of complete Infinity system with added humidifier
- Can help boost cooling SEER efficiency when matched with appropriate cooling system components matched with appropriate cooling system components
Technology
- Two-stage gas valve
- Variable-speed, ECM blower motor
- Pilot-free, hot surface PowerHeat™ ignition
- Variable-speed, ECM inducer motor
- Aluminized steel primary heat exchanger
- Stainless steel fin-and-tube design secondary heat exchanger
- Sound reduction: fully insulated cabinet and QuieTech™ noise reduction
- Infinity level advanced diagnostic intelligence
- Recommended control: Infinity control
Capacities
- 60,000-120,000 Btu/h
Installation
- Flexible installation: upflow, downflow or horizontal
- Versatile venting for tight-fit applications
Requirements
- 115 V
- .5″ gas connection
- Convertible to Liquid Propane (LP)
Aesthetics
- 20-gauge, galvanized steel with appliance finish
- Baked on urethane base coat and polyester top coat paint in taupe metallic
- Dimensions in upflow position: 35″H x width varies by size: 17.5-24.5″ x 30″D
