Cooling Efficiency : Dependent upon outdoor unit pairing
Heating Efficiency : Dependent upon outdoor unit pairing
Comfort Features : Better
Overview
Performance™ Series Ductless Systems offer that perfect balance between budget limits you may have today and your desire for energy savings and comfort options.

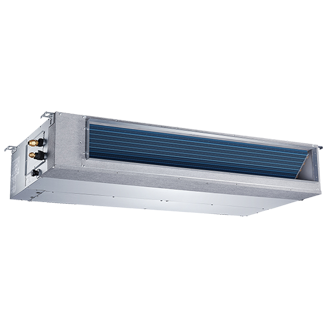

Carrier puts comfort where you need it with the PerformanceTM Series 40MBDQ Ducted indoor unit. Designed to fit in-ceiling, under-the floor or vertically in the wall, it’s perfect for either a single or multi-zone ductless system. This model offers the convenience of a temperature-sensing handheld remote as well as customized comfort with three available fan speeds. For spaces requiring longer duct runs, we offer a high-static version that’s compatible with the 38MBR Single Zone heat pump.
STANDARD FEATURES
- Sizes: 09 / 12 / 18 / 24 / 36 / 48 / 58
- Available in 208/230V
- Modes: Cool, Heat, Dry, Fan, Auto
- Vertical (sizes 09 – 48) or horizontal (All Sizes) installation
- Up to 0.8 in WG
- Rear or bottom return
- Outside air intake
- External Condensate Lift Pump shipped with the unit (sizes 09-18)
- Built-in condensate lift pump (size 24-58)
- Follow Me (senses temperature at handheld remote)
- Heating Setback (46° F Heating Mode)
- Quiet indoor operation, as low as 35 decibels1
- Aluminum Golden Hydrophilic pre-coated fins
- 10-year parts limited and 10-year compressor limited warranties to the original
- purchasing owner upon timely registration2
1 Quietest size within each model group during low fan-speed operation
2 If properly registered within ninety (90) days after original installation, parts are warranted to the original purchaser for a period of 10 years. Otherwise, parts warranty is 5 years. For other applications a 7-year parts and 7-year compressor limited warranties apply. See warranty certificate for details.
PERFORMANCE
- Quiet indoor operation, as low as 35 decibels1
CAPACITIES
- 0.75 – 4.8 Ton
REQUIREMENTS
- 208/230V
AESTHETICS
- Unit cabinet is constructed of galvanized steel. The cabinet is fully insulated for improved thermal and acoustic performance.
1 Quietest size within each model group during low fan-speed operation
