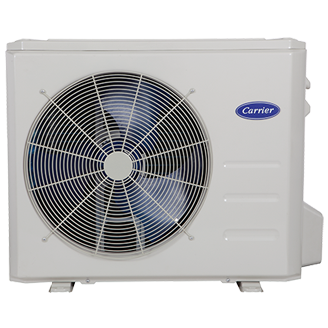

Performance™ Heat Pump With Basepan Heater 38MAR

Products Cooling Performance Performance™ Heat Pump With Basepan Heater 38MAR

Cooling Efficiency : Up to 25.0 SEER

Heating Efficiency : Up to 12.0 HSPF

Comfort Features : Better

Edit Content

Standard Features

  • Available in 115V and 208/230V
  • Modes: Cool, Heat, Dry, Fan, Auto
  • Four indoor unit fan speeds
  • Turbo Mode
  • Sleep Mode
  • Follow Me (senses temperature at handheld remote)
  • Quiet indoor sound operation, as low as 27 decibels1
  • Heating Setback (46° F Heating Mode)
  • 10-year parts limited and 10-year compressor limited warranties to the original
  • purchasing owner upon timely registration2

Control Standard Features

  • Wireless Remote Controller standard
  • Optional Wired Remote Controller (Timer Function)

Optional Features

  • Condensate Pump (115V and 230V optional)
  • Insulated 25′ Lineset

1 Quietest size within each model group during low fan-speed operation

2 If properly registered within ninety (90) days after original installation, parts are warranted to the original purchaser for a period of 10 years. Otherwise, parts warranty is 5 years. For other applications a 7-year parts and 7-year compressor limited warranties apply. See warranty certificate for details.

Edit Content

Standard Features

  • 100% Heating Capacity at 5° F (-15° C)*
  • Inverter Compressor
  • Up to 25.0 SEER cooling efficiency
  • Up to 12.0 HSPF heating efficiency
  • Available in 115V and 208/230V
  • Built-in basepan heater
  • Piping length 82 ~ 164 ft. (25 ~ 50 m) depending on unit capacity
  • Refrigerant leakage detection
  • Condenser high-temperature protection
  • Quiet outdoor sound operation, as low as 52.5 decibels1
  • 10-year parts limited and 10-year compressor limited warranties to the original
  • purchasing owner upon timely registration2

1 Quietest size within each model group during most common cooling operating condition.

2 If properly registered within ninety (90) days after original installation, parts are warranted to the original purchaser for a period of 10 years. Otherwise, parts warranty is 5 years. For other applications a 7-year parts and 7-year compressor limited warranties apply. See warranty certificate for details.

* Sizes 9-24 (208/230V). Dependent upon indoor unit combination.

Edit Content

Efficiency

  • Modes: Cool, Heat, Dry, Fan, Auto
  • Four indoor fan speeds
  • Indoor sound: as low as 27 decibels1
  • Select sizes are ENERGY STAR® qualified certified based on outdoor unit pairing

Technology

  • Voltage and current protection
  • Recommended control: Wireless Remote Controller (included)

Capicities

  • 0.75 – 3.0 tons

Requirements

  • 0.75 – 1 ton 115V
  • 0.75 – 3 tons 208/230V
  • Indoor powered by outdoor unit

Aesthetics

  • Modern, flat panel indoor unit in white

Accessories

  • Condensate Pump (115V and 230V optional)
  • Insulated 25’ Line Set

COMPARE TO OTHER MODELS

1 Quietest size within each model group during low fan-speed operation
