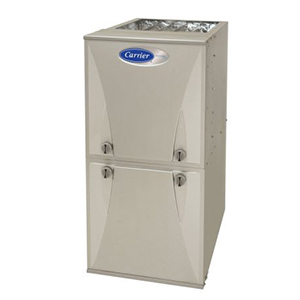

Performance Boost 90 Gas Furnace 59sp5

Products Heating Performance Performance Boost 90 Gas Furnace 59SP5

Performance Boost 90 Gas Furnace 59SP5

Enjoy High Efficiency Comfort

Edit Content

Standard Feature

  • Sizes: 09 / 12 / 18 / 24
  • Available in 115V and 208/230V
  • Refrigerant leakage detection
  • Auto-restart function
  • Condenser high-temperature protection
  • Quiet outdoor operation, as low as 50.5 decibels1
  • Aluminum Golden Hydrophilic pre-coated fins
  • 10-year parts limited and 10-year compressor limited warranties to the original
  • purchasing owner upon timely registration2

1 Quietest size within each model group during low fan-speed operation

2 If properly registered within ninety (90) days after original installation, parts are warranted to the original purchaser for a period of 10 years. Otherwise, parts warranty is 5 years. For other applications a 7-year parts and 7-year compressor limited warranties apply. See warranty certificate for details.

Edit Content

Efficiency

  • Up to 96.5% AFUE
  • Select sizes meet ENERGY STAR® qualifications

Technology

  • Single-stage gas valve
  • Multi-speed, ECM blower motor
  • Pilot-free, hot surface PowerHeat™ ignition
  • Fixed-speed inducer motor
  • Aluminized steel clamshell-style primary heat exchanger
  • Stainless steel fin-and-tube design secondary heat exchanger
  • Sound reduction: fully insulated cabinet and QuieTech™ noise reduction
  • Recommended controls: Performance™ Edge® relative humidity or ComfortZone™ II thermostats
  • Stainless steel fin-and-tube design secondary heat exchanger
  • Sound reduction: fully insulated cabinet and QuieTech™ noise reduction
  • Recommended controls: Performance™ Edge® relative humidity or ComfortZone™ II thermostats

Capacities

  • 40,000-120,000 Btu/h

Performance

  • Allows choices of “constant ON” fan speed operation1
  • Hybrid Heat® compatible
  • Year-round humidity management when installed as part of complete Performance system with humidifier
  • Can help boost cooling SEER efficiency when matched with appropriate cooling system components

Installation

  • Flexible installation: upflow, downflow or horizontal
  • Versatile venting for tight-fit applications

Aesthetics

  • 20-gauge, galvanized steel with appliance finish
  • Baked on urethane base coat and polyester top coat paint in taupe metallic
  • Dimensions in upflow position: 35″H x width varies by size: 14.2-24.5″ x 30″D

Requirements

  • 115 V
  • .5″ gas connection
  • Convertible to Liquid Propane (LP)
